Perforated cable tray - KBS110

Alternative perforation
Return flanges


ETIM: EC000047


HD Reference
mm

mm

mm

mm
kg
m
Stock Unit
HD KBS110.100.100 110 100 1.00 3000 1.98 24 v M
HD KBS110.150.100 110 150 1.00 3000 2.29 24 v M
HD KBS110.200.100 110 200 1.00 3000 2.576 24 v M
HD KBS110.300.100 110 300 1.00 3000 3.168 24 v M
HD KBS110.400.100 110 400 1.00 3000 3.751 24 v M
HD KBS110.500.125 110 500 1.25 3000 6.030 24 v M
HD KBS110.600.125 110 600 1.25 3000 6.840 24 v M

Standard finish

  • Standard finish Pre-galvanised

Optional finish

  • Optional finish Hot-dip galvanised
  • Optional finish Coating
CHARACTERISTICS
Embedded perforations for:
- extra load capacity
- better aeration
- better stability
- better condensation drainage

Alternative perforations for:
- better fixing to supports
- very useful for attaching cables
TECHNICAL INFORMATION
The perforation scheme differs according to the width.
Alternative perforation beginning at 200 mm.
Round holes of Ø 16 mm and Ø 19.5 mm provided as opening for the fitting of a gland.

Technical info

Load diagram

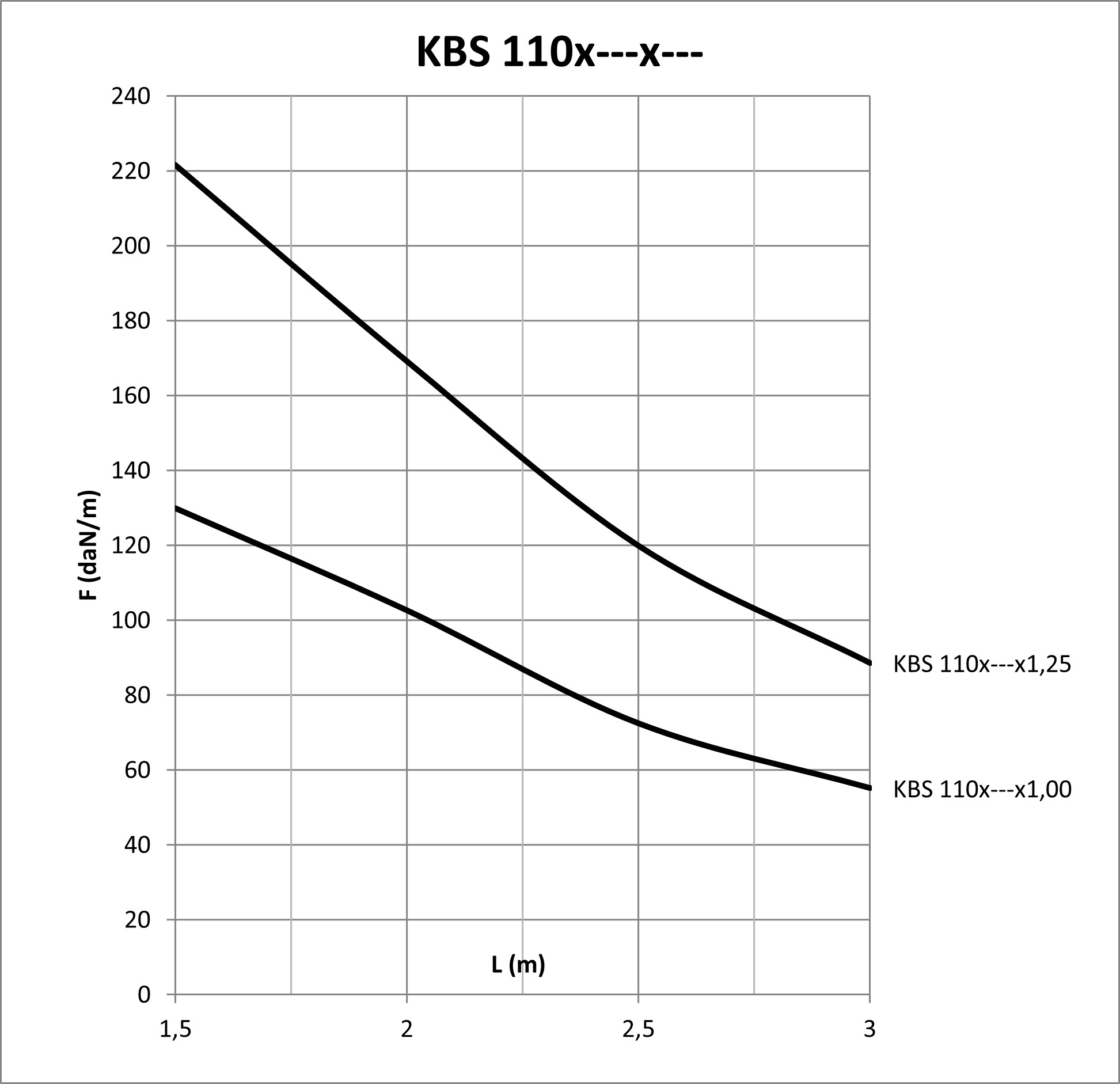

KBS110 LOAD DIAGRAM
This diagram illustrates the permissible uniformly distributed loads applied to multiple supports. They comply with IEC 61537 with connection in the centre of the span and the end span = 0,8 x the span. For widths of 300 and up, it is advised to use a stiffening plate. For span distances > 4 meters, couple the cable trays with KPW

F = max. admissible load (daN/m)
L = support distance (m)
Max. deflection (m) = L/100
